Motor Management System
MMS is a versatile tool implanted in plant maintenance for monitoring motor system parameters in the manufacturing area.
MMS are widely used for the monitoring of Motor conditions and on-off of Motor.
SCADA normally comprises of personal computer with software package which is constantly communicating to the interface Gateway units where by acquiring data which can be stored in the PC. SCADA also enables direct write instruction to the interface Gateway whereby entire system can be control remotely from PC.
MMS is a versatile tool implanted in plant maintenance for monitoring motor system parameters in the manufacturing area.
MMS are widely used for the monitoring of Motor conditions and on-off of Motor.
- The offered system is built up with features that include.
- MMS for manufacturing normally uses Interface Gateway to monitor Motor activities. These are made available to user using various instance systems like data printer, audible alarms, SCADA units or an advance interface system called SCADA.
SCADA normally comprises of personal computer with software package which is constantly communicating to the interface Gateway units where by acquiring data which can be stored in the PC. SCADA also enables direct write instruction to the interface Gateway whereby entire system can be control remotely from PC.

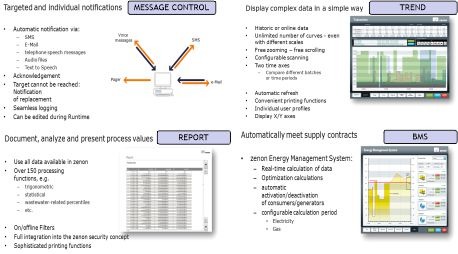

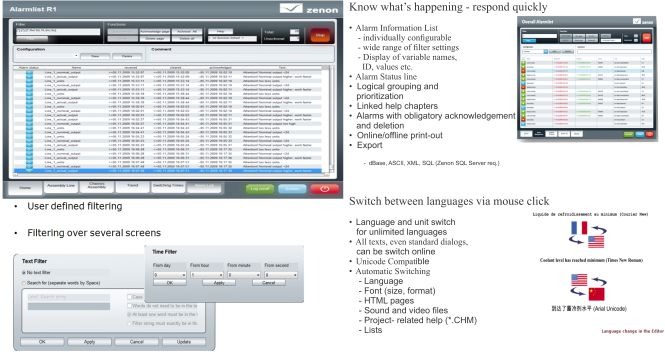

- The HMI/SCADA System is envisaged to provide complete HMI Functions. Real time data monitoring. Controlling, Trending, Diagnostics and Sequence of alarms/events recording using AA-SCADA HMI Platform.
Feature Rich ,Flexible & Compatible For Viewing On Multiple Hardware Platforms
MMS is a complete solution consisting of the Engineering Workstation and Interface Gateway taking all data from devices on Modbus RTU protocol and Hardwired signals from various field devices.
The main Interface Gateway consists of the Modbus Communication card reading data from the Soft Starter on RS485. Each Soft Starter is connected in a single daisy chain arrangement terminated at a HUB. The HUB then communicates to the main Interface Gateway.
All the data processing is done at the Main Interface Gateway and then the data can be viewed on the EWS. Communication between Main Interface Gateway & EWS is on Modbus TCP/IP.

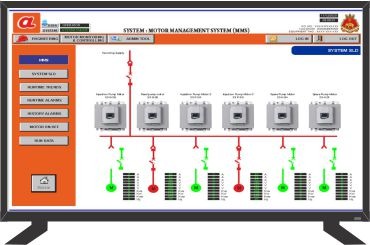

A 21.5" Monitor is provided in Control Room (EWS) to control and Monitor real time parameters of Motor.
